Compact Control System PCS41 / PCS43
The PCS Process control systems are applicable for Measurement and Process Controls
- PCS 40 Mold level measurement
- PCS 41 Mold level measurement and line speed controls
- PCS 43 Mold Level measurement and Tundish slide gate controls or/and Stopper rod controls
| PCS41(speed control) / PCS43 (speed, slide gate, stopper rod, CCS control) is a new and revolutionary concept of combining a high performance PCC (programable computer controller) with a superior and user friendly MMI (man-machine interface). PCS41 / PCS43 is integrating adaptive level measurement with multilayer PID controls built into one Process Control System, enabling it to reach new levels of liability, user friendlyness, speed and accuracy in automatic process control applications. |  |
|

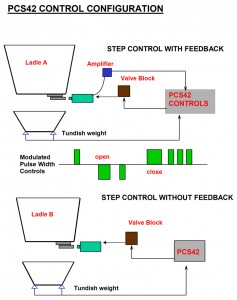

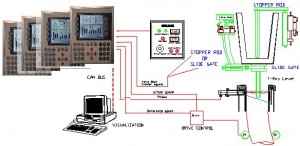

Configuration
|
|
 |

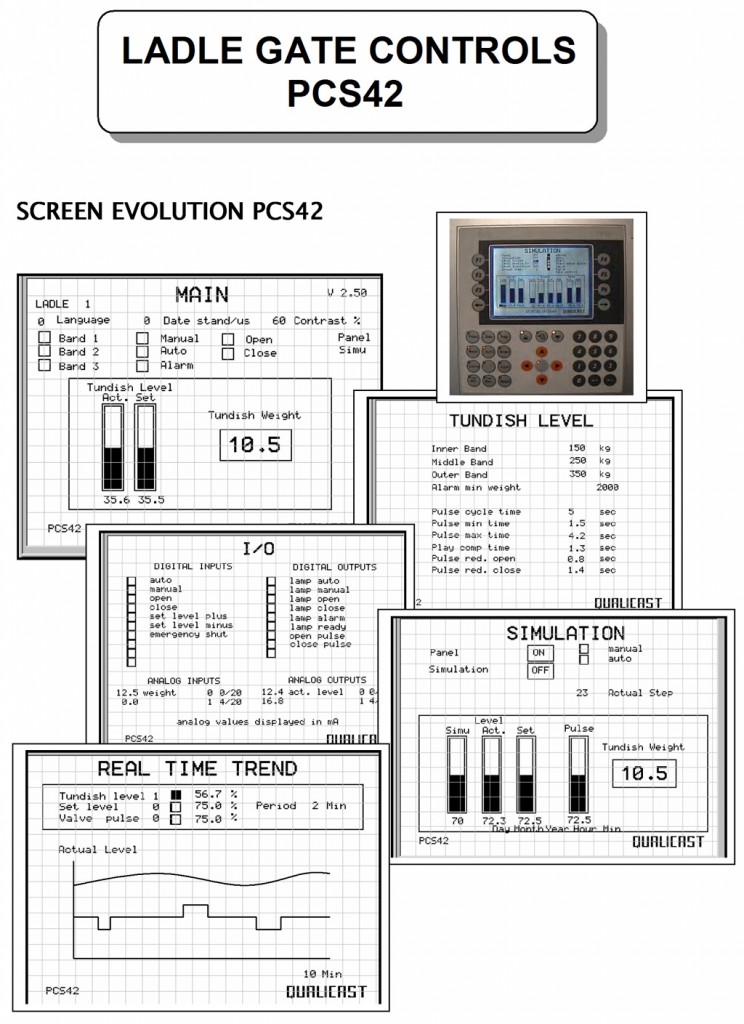

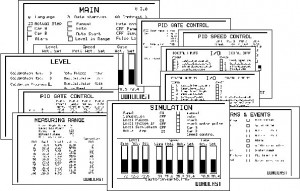

Screens
|
|
Features
|
|
|
|
|
|
|
|
|
|
|
